V-TAC · SUN-8K-SG05LP1 -EU-AM2-P
● ON REQUEST · CHECK AVAILABILITY

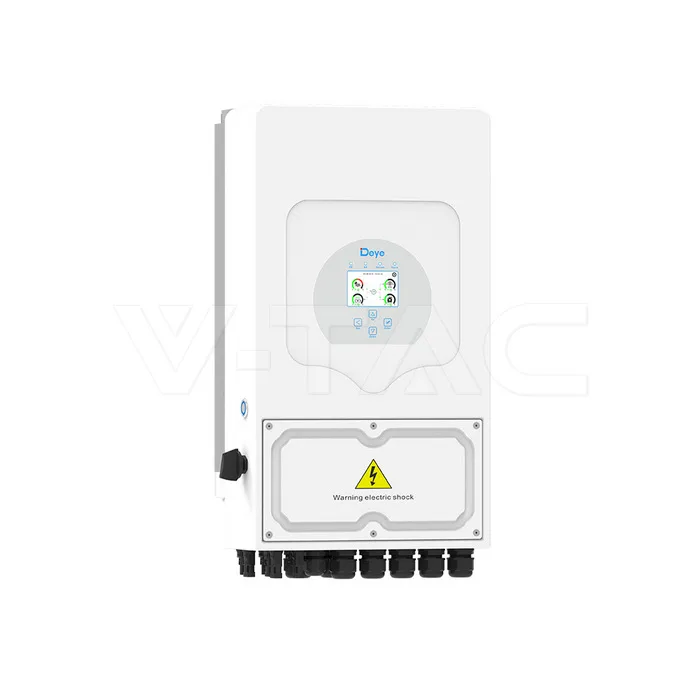

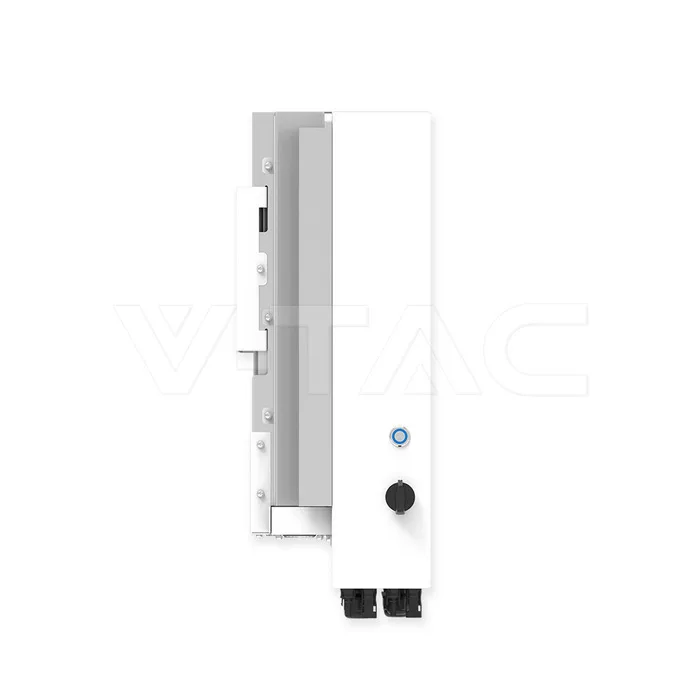

8kW Hybrid Solar Inverter Single Phase 230VAC Large

8kW Hybrid Solar Inverter Single Phase 230VAC Large with IP65 protection and an operating range of -40~60°C, >45°C derating. 10 years; certification on file: Declaration of Conformity, VDE Certificate, Certificate of Conformity and EMC License.

EXCL. VAT · LIST PRICE
TierYour priceTerms
A verified trade account shows prices and tier discounts of 0, 5, 10 and 15%. Approval takes up to one business day.🔒 Unlock trade pricing
MANUFACTURER WARRANTY
10 years
The manufacturer's own terms and conditions apply. We administer the claim — see the terms of sale.
CERTIFICATION · 4
Declaration of ConformityVDE CertificateCertificate of ConformityEMC License

Technical specification

ELECTRICAL DATA12 items
Max. PV Access Power16000W
Rated AC Input/Output Active Power8000W
Rated AC Input/Output Current36.4/34.8A
Max. AC Input/Output Current40/38.3A
Start-up Voltage125V
Rated Input/Output Voltage/Range220/230 0.85Un-1.1Un
FrequencyRated Input/Output Grid Frequency/Range 50/45-55, 60/55-65
Power Factor0.8 leading to 0.8 lagging
PhaseSingle Phase
Max. DC Input Voltage500V
Max. Input Short-Circuit Current (A)48+48
Max. PV Input Power (W)12800
MECHANICAL & BUILD1 item
Max. Continuous AC Passthrough50A
PHYSICAL DATA2 items
Working conditions-40~60°C, >45°C derating
IP RatingIP65
CERTIFICATIONS & WARRANTY3 items
Warranty10 years
ZEREZ registration no.ZE-KAXY-PJ9S-0018 (VDE-AR-N 4105:2018-11)
ZEREZ register checked on2026-10-26
PACKAGING1 item
Item Weight30.4 kg
PRODUCT DATA3 items
Order code12310
Product codeSUN-8K-SG05LP1 -EU-AM2-P
BrandDeye

Documents

CERTIFICATES
CE certificateEMC / RED reportEN 50549 certificate / reportManufacturer declarationDeclaration of conformity
CEI 0-21 certificate (Italy)
CEI 0-21 certificate (Italy)Ning Sun (3.6 10) VT48200B CEI 021 2022 03 ita eng 26 015 00
CEI 0-21 certificate (Italy)Ning Sun (3.6 10) VT48280&14336 CEI 021 2022 03  ita eng 25 211 00
