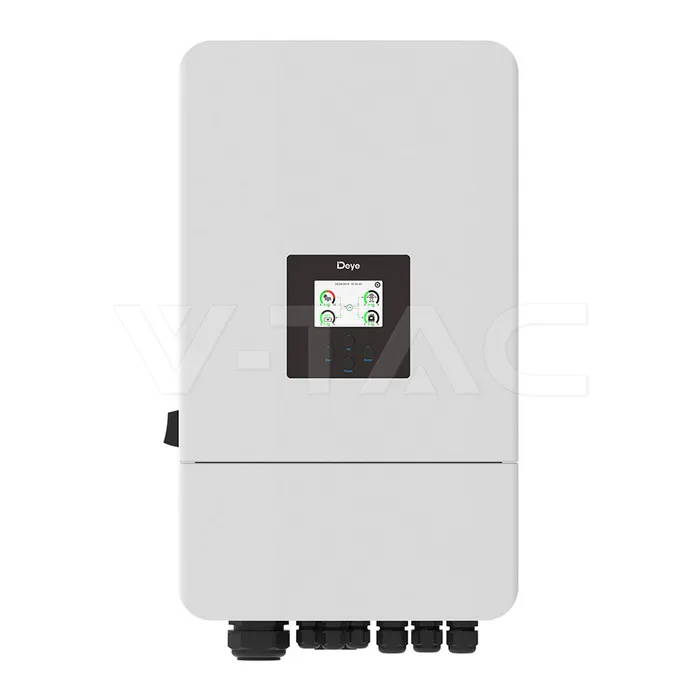

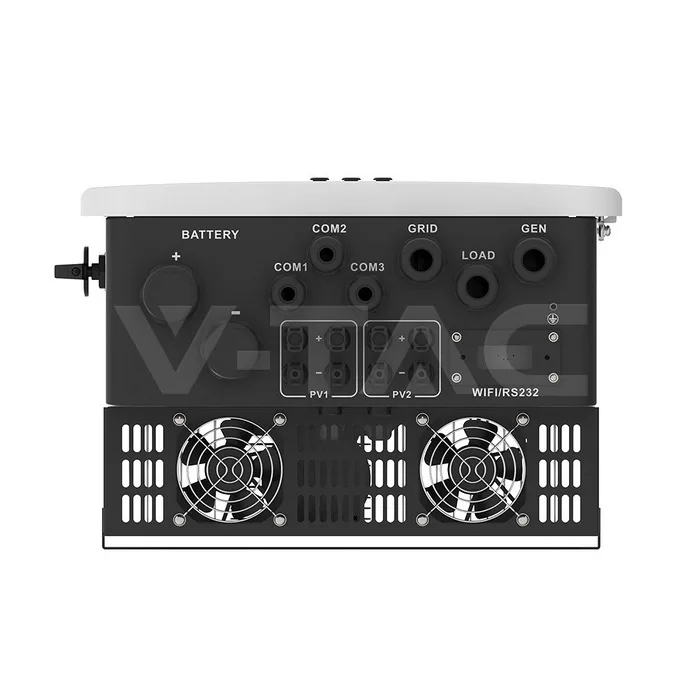

5kW Hybrid Solar Inverter Three Phase 380VAC

5kW Hybrid Solar Inverter Three Phase 380VAC with IP65 protection and an operating range of -40 to +60℃, >45℃ Derating. Certification on file: Declaration of Conformity, Certificate of Conformity, EMC License and LVD License.

EXCL. VAT · LIST PRICE

TierYour priceTerms

A verified trade account shows prices and tier discounts of 0, 5, 10 and 15%. Approval takes up to one business day.🔒 Unlock trade pricing

Questions?Call +39 349 875 4495 +359 88 6284361 WhatsApp

MANUFACTURER WARRANTY

Manufacturer's terms apply

The manufacturer's own terms and conditions apply. We administer the claim — see the terms of sale.

CERTIFICATION · 5

Declaration of ConformityCertificate of ConformityEMC LicenseLVD LicenseTÜV Certificate

Technical specification

ELECTRICAL DATA11 items

Max. PV Input Power8000W

Rated AC Input/Output Active Power5000W

Peak Power (off-grid)2 times of rated power, 10s

CurrentMax. Operating PV Input Current (A) 20+20 Max. Input Short-Circuit Current (A) 30+30; Rated AC Input/Output Current (A) 7.6/7.3; Max. AC Input/Output Current (A) 8.4/8

PhaseThree Phase

Max. PV Input Voltage800V

MPPT Range200~650V

Rated PV Input Voltage550V

Start-up Voltage160V

FrequencyRated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65

Power Factor0.8 leading to 0.8 lagging

PHYSICAL DATA3 items

IP RatingIP65

Working conditions-40 to +60℃, >45℃ Derating

Size386 x 660 x 250 mm

CERTIFICATIONS & WARRANTY2 items
