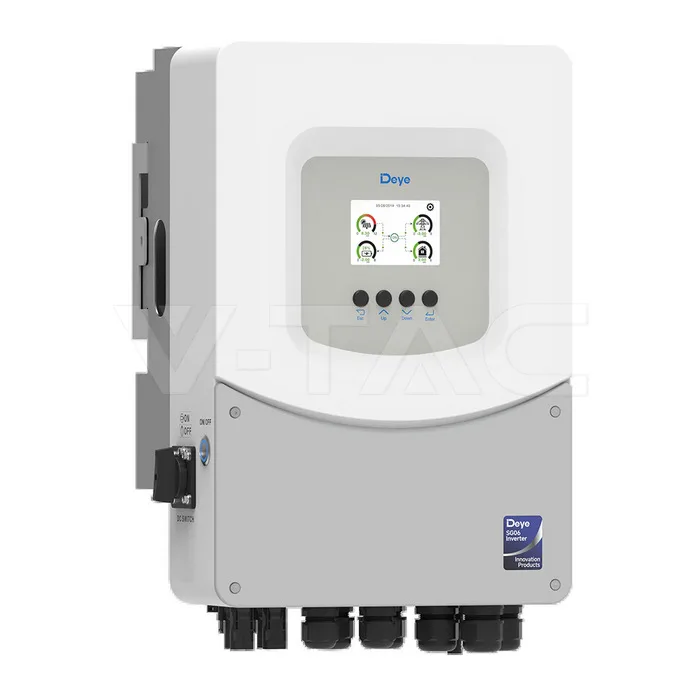

6kW Hybrid Solar Inverter Single Phase Deye

6kW Hybrid Solar Inverter Single Phase Deye with IP65 protection and an operating range of -40 to +60℃, >45℃ Derating. 10 years.

EXCL. VAT · LIST PRICE

TierYour priceTerms

A verified trade account shows prices and tier discounts of 0, 5, 10 and 15%. Approval takes up to one business day.🔒 Unlock trade pricing

Questions?Call +39 349 875 4495 +359 88 6284361 WhatsApp

MANUFACTURER WARRANTY

10 years

The manufacturer's own terms and conditions apply. We administer the claim — see the terms of sale.

CERTIFICATION

IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Technical specification

ELECTRICAL DATA20 items

Max. PV Access Power12000W

Max. PV Input Power9600W

Rated AC Input/Output Active Power6000W

Max. AC Input/Output Apparent Power (VA)6600

Peak Power (off-grid) (W)2 times of rated power, 10s

Max. Operating PV Input Current18+18A

Max. Input Short-Circuit Current27+27A

Rated AC Input/Output Current27.3/26.1A

Max. AC Input/Output Current30/28.7A

PhaseSingle Phase

Max. PV Input Voltage500V

Start-up Voltage125V

MPPT Voltage Range150-425V

Rated PV Input Voltage370V

No. of MPPT/Strings per MPPT2/1+1

Battery TypeLead-acid or Lithium-ion

Battery Voltage Range40-60V

Maximum Charge/Discharge Current135A

Frequency50/45-55, 60/55-65 Hz

Power Factor0.8 leading to 0.8 lagging

MECHANICAL & BUILD1 item

Max. Continuous AC Passthrough50A

PHYSICAL DATA3 items

IP RatingIP65

Working conditions-40 to +60℃, >45℃ Derating

Size310 x 460 x 218 mm

CERTIFICATIONS & WARRANTY2 items

CertificationIEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G99, VDE-AR-N 4105, IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Warranty10 years

PACKAGING1 item

Item Weight15.6 kg

PRODUCT DATA3 items

Order code12826

Product codeSUN-6K-SG06LP1-EU-BM2

BrandDeye
