CATALOG/SOLAR INVERTERS/SKU 11743
5kW On/Off Grid Hybrid Solar Inverter Three Phase · 1
5kW On/Off Grid Hybrid Solar Inverter Three Phase · 2
5kW On/Off Grid Hybrid Solar Inverter Three Phase · 3
5kW On/Off Grid Hybrid Solar Inverter Three Phase · 4
V-TAC · SUN-5K-SG04LP3-EU
● IN STOCKAVAILABLE · Stock as of 30 OCT 2026

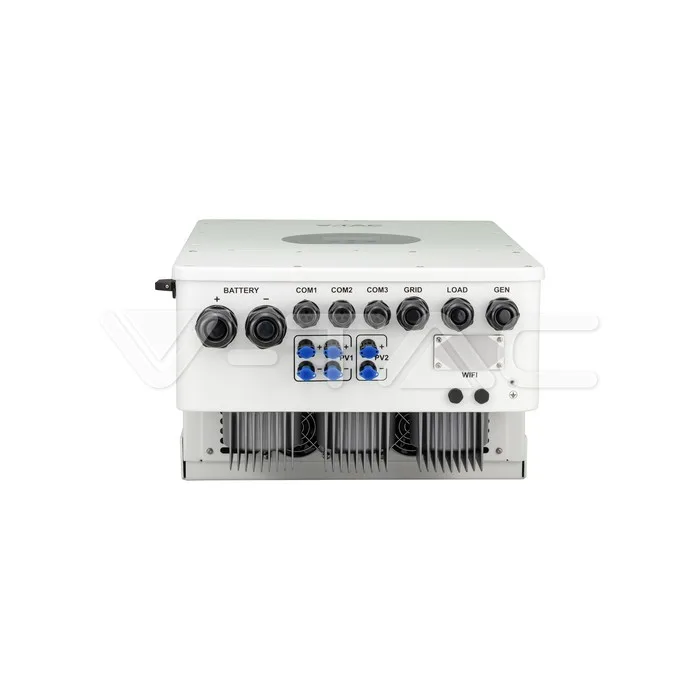

5kW On/Off Grid Hybrid Solar Inverter Three Phase

5kW On/Off Grid Hybrid Solar Inverter Three Phase with IP65 protection and an operating range of -40~60℃ BJ2, >45℃ Derating. 10 years; certification on file: EMC License, LVD License and Declaration of Conformity.

EXCL. VAT · LIST PRICE
TierYour priceTerms
A verified trade account shows prices and tier discounts of 0, 5, 10 and 15%. Approval takes up to one business day.🔒 Unlock trade pricing
MANUFACTURER WARRANTY
10 years
The manufacturer's own terms and conditions apply. We administer the claim — see the terms of sale.
CERTIFICATION · 3
EMC LicenseLVD LicenseDeclaration of Conformity

Technical specification

ELECTRICAL DATA16 items
Max. Input Power6500W
Rated AC Output Active Power5000W
Max. AC Output Active Power5500W
PV Input Current13A+13A
AC Output Rated Current7.6/7.2A
Max. AC Output Current8.4/8A
Max. Three-phase Unbalanced Output Current11.4/10.9A
Max Output short circuit current75A
Rated PV Input Voltage550 (160-800)
MPPT Range200-650V
Full Load DC Voltage Range350-650V
Start-up Voltage160V
FrequencyOutput Frequency 50/60Hz
Power Factor0.8 leading to 0.8 lagging
PhaseThree Phase
Max. DC Input Voltage800V
MECHANICAL & BUILD1 item
Max. Continuous AC Passthrough45A
PHYSICAL DATA3 items
Working conditions-40~60℃ BJ2, >45℃ Derating
IP RatingIP65
Cabinet Size (WxHxD mm)422 × 702 × 281 Excluding Connectors and Brackets
CERTIFICATIONS & WARRANTY3 items
Warranty10 years
ZEREZ registration no.ZE-KAXY-DCTY-0001 (VDE-AR-N 4105:2018-11)
ZEREZ register checked on2026-10-26
PACKAGING2 items
Item Weight33.6 kg
Items per box1
PRODUCT DATA3 items
Order code11743
Product codeSUN-5K-SG04LP3-EU
BrandDeye
Open account to order

Same category — not a compatibility check.
